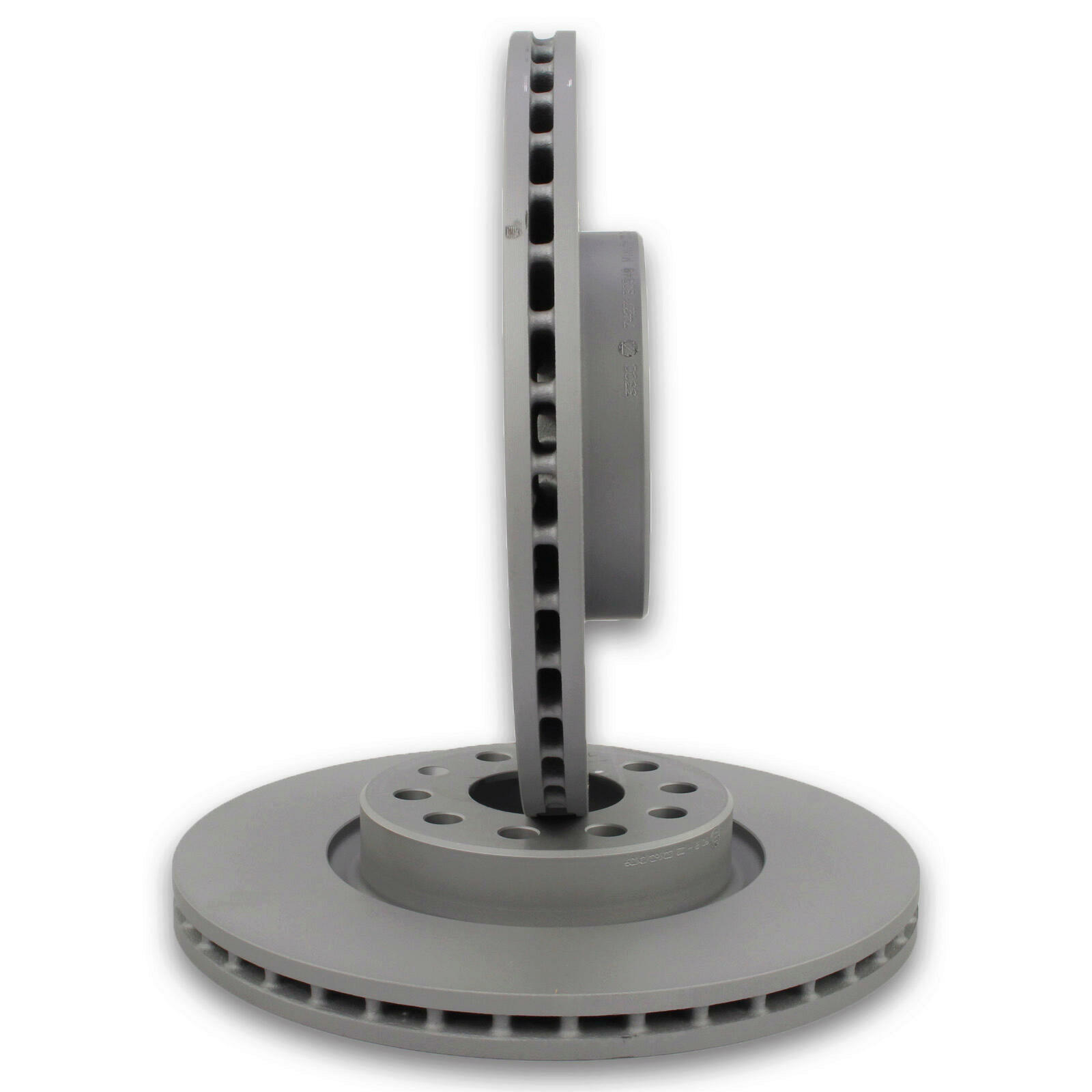

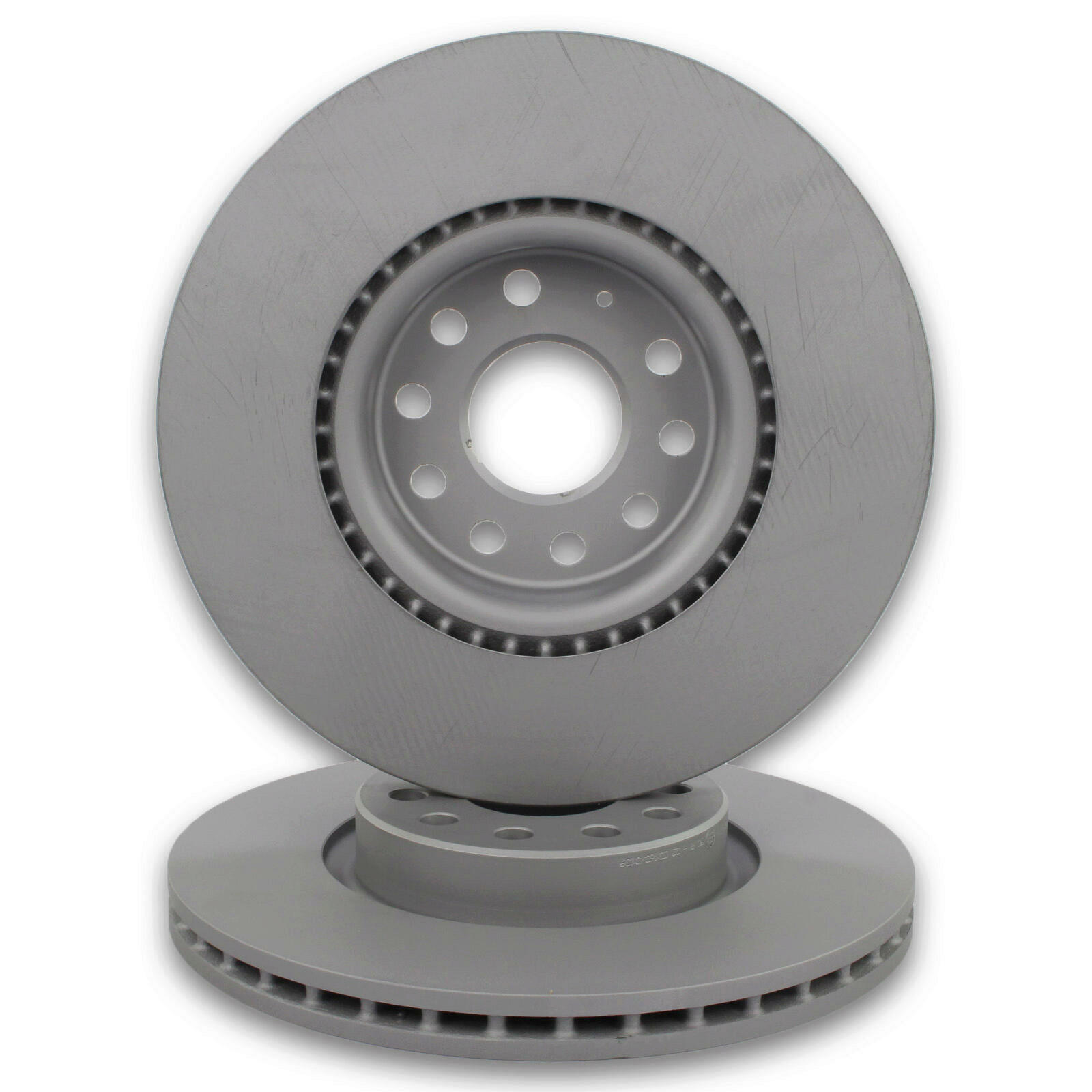

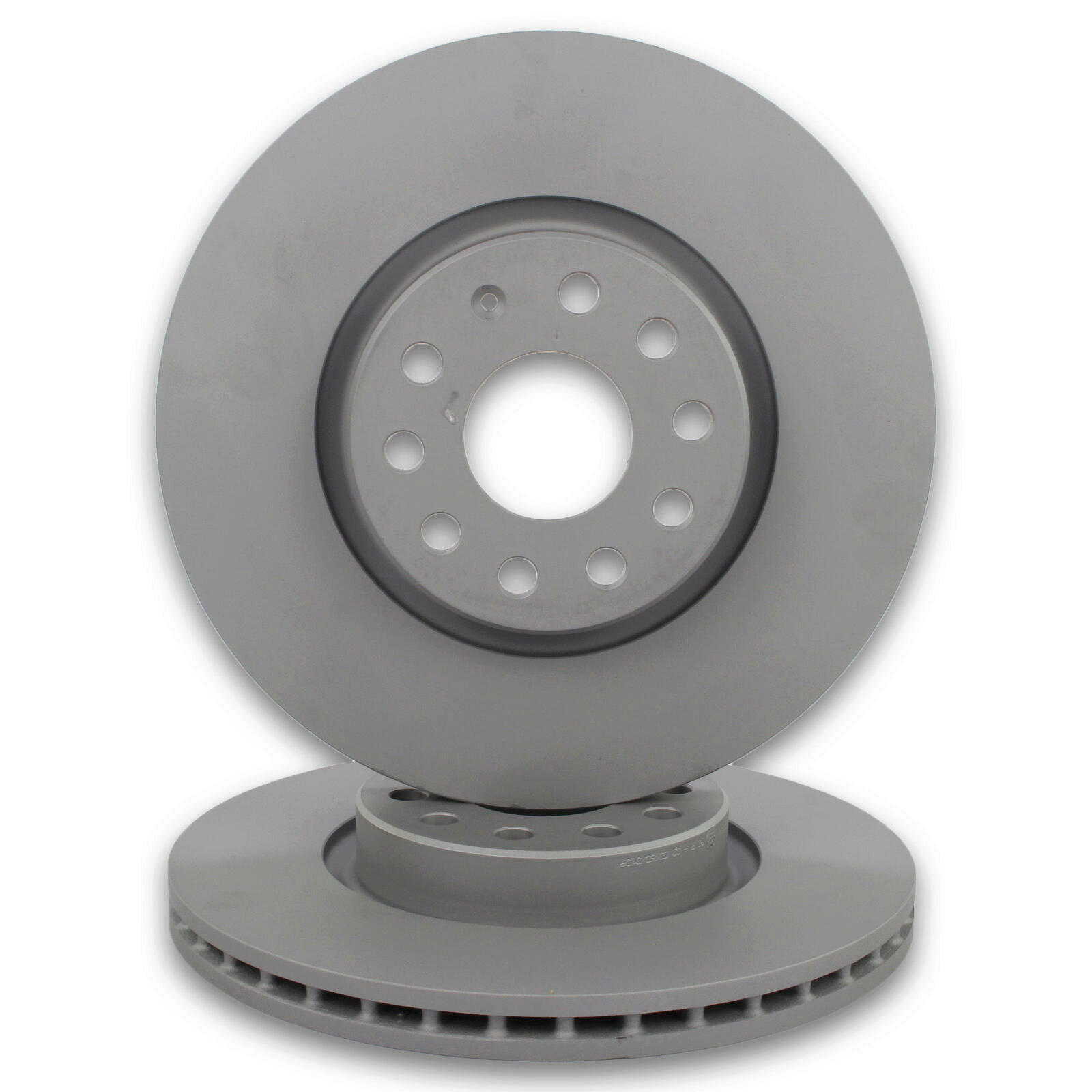

2x ZIMMERMANN Brake Disc COAT Z
(100.3300.20)
Item No.: XY307680

Item No.:: XY307680
Manufacturer:: ZIMMERMANN
Manufacturer-Number:: 100.3300.20
EAN-Code:: 4250238718185

Fitting Position:: Front

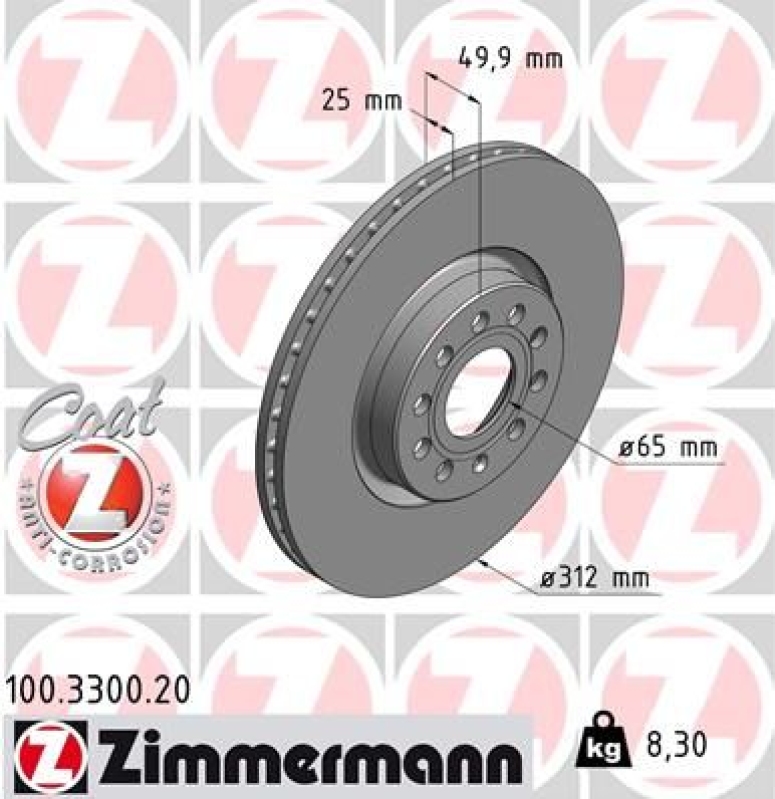

Height [mm]:: 50
Thickness [mm]:: 25
Minimum thickness [mm]:: 22
Centering Diameter [mm]:: 65
Brake Disc Thickness [mm]:: 25
Surface:: Coated
Bolt Hole Circle Ø [mm]:: 112
Brake Disc Type:: innenbelüftet
Machining:: High-carbon
Outer Diameter [mm]:: 312
Bolt Hole Circle Ø 1 [mm]:: 112
Hub Bore Ø [mm]:: 65
Outer Diameter [mm]:: 312,00
Crossreference:: BREMBO 09.9772.10, JAPANPARTS DI-0902C, FTE BS5416, CIFAM 800-840C, BREMBO 09.9772.1X, ROTINGER RT 20312-GL T3, MASTER-SPORT GERMANY 24012501581PR-PCS-MSP, ATE 24.0125-0158.1, MAXGEAR 19-1044, OPTIMAL BS-8036HC, METZGER 6110072, BOSCH 0 986 479 932, MINTEX MDC1706C, MAPCO 47921, PROTECHNIC PRD2307, BARUM BAR25158, ASHUKI by Palidium P330-018, BRECO BS 8585, MTR 12108505, VAICO V10-6620, MASTER-SPORT GERMANY 202521581, ROADHOUSE 6972.10, MJ Allen Automotive NBD1353, MOTAQUIP LVBD1103, HERTH+BUSS JAKOPARTS J3300810, MAGNETI MARELLI 361302040679, ROTINGER RT 20312HP-GL T3, SAMKO A1004VR, MAPCO 25833C, JURID 562387J, NK 3147115, AP 24966, MAGNETI MARELLI 360406050602, AIC 54879, FTE BS5416B, MAGNETI MARELLI 360406050601, TEXTAR 92120500, VALEO 197242, ZIMMERMANN 100.3300.53, MASTER-SPORT GERMANY 24012501581-PCS-MS, HELLA 8DD 355 127-971, AUTOMOTOR France PDC6153, FEBI BILSTEIN 24384, JAPKO 600902C, TEXTAR 92120505, ROTINGER RT 20312, MASTER-SPORT GERMANY 202521580, NPS V330G03, BOSCH 0 986 479 C29, LPR A1004VR, MASTER-SPORT GERMANY 24012501581-SET-MS, FREMAX BD-5618, MASTER-SPORT GERMANY 202501580P, MEYLE 183 521 1094/PD, QUARO QD8286, KLAXCAR FRANCE 25053z, MAPCO 47634, HELLA PAGID 8DD 355 109-521, BREMBO 09.9772.75, MASTER-SPORT GERMANY 202521581P, DENCKERMANN B130300P, VAICO V10-80085, DON PCD10052, MAPCO 47833, MASTER-SPORT GERMANY 202521582P, JP GROUP 1163109500, WAGNER WGR1305-1, KRAFT AUTOMOTIVE 6040520, MASTER-SPORT GERMANY 202501582P, MASTER-SPORT GERMANY 202501582, BREMBO 59.E114.37, FTE BS5416HB, GH GH-409962, MAPCO 25833, DACO Germany 604784, FERODO DDF1305C, ROTINGER RT 20312HP-GL T6, MAGNETI MARELLI 361302040126, TRUSTING DF1069, MASTER-SPORT GERMANY 202521582, HELLA PAGID 8DD 355 127-971, ABAKUS 231-03-012, ROTINGER RT 20312HP-GL, MAXGEAR 19-1044MAX, DENCKERMANN B130300, JURID 562387JC, MASTER-SPORT GERMANY 202501581, VAICO V10-6623, VAICO V10-6627, EUROBRAKE 58153147115, MASTER-SPORT GERMANY 24012501581PR-PCS-MS, ICER 78BD5618-2, REMSA 6972.10, SKF VKBD 80006 V1, MASTER-SPORT GERMANY 202501581P, ABE C3W039ABE, FAST FT31161, ATE 24.0325-0158.1, RAICAM RD01121, BORG & BECK BBD4383, GIRLING 6044645, Dr!ve+ DP1010.11.0433, METELLI 23-0840C, QUARO QD8286HC, A.B.S. 17558, BOSCH 0 986 479 058, AP 24966 V, ROTINGER RT 20312-GL T9, BLUE PRINT ADV184308, CHAMPION 562387CH, JURATEK VAG178, HELLA 8DD 355 109-521, ROTINGER RT 20312HP-GL T5, ROTINGER RT 20312-GL T6, MAPCO 47833HPS, FTE 9082568, TOPRAN 110 073, VAICO V10-6743, MASTER-SPORT GERMANY 202501580, JURID 562387JC-1, ASHIKA 60-00-0902C, ROTINGER RT 20312-GL, TRW DF4464S, ROTINGER RT 20312HP, MJ Allen Automotive B010014, MAPCO 47634HPS, MEYLE 115 521 1094, TOMEX Brakes TX 71-12, MASTER-SPORT GERMANY 202521580P, ROTINGER RT 20312-GL T5, FTE 9081214, RIDEX 82B0031, OPEN PARTS BDR2207.20, MASTER-SPORT GERMANY 24012501581SE-SET-MSP, MASTER-SPORT GERMANY 24012501581SE-SET-MS, VALEO 672500, SWAG 30 92 4384, ROTINGER RT 20312HP-GL T9, MAXGEAR 19-1044SPORT, ZIMMERMANN 100.3300.52, KAWE 6972 10, AP X 24966, AP 24966 X, NK 2047115, BRECO BV 8585, EUROBRAKE 58152047115, MAGNETI MARELLI 360406050605, BREMBO 09.9772.11, MASTER-SPORT GERMANY 24012501581-SET-MSP, ProfiPower 3B1006, JPN 30H9025-JPN, OPEN PARTS BDA2207.20, TRUCKTEC AUTOMOTIVE 07.35.209
Number of Holes:: 5
manufacturer:: ZIMMERMANN

manufacturer	model	type	power	capacity	constr. date	kba	limitations

OE numbers

AUDI (FAW) L1KD 615 301 D, SKODA (SVW) 1K0 615 301 AA, SKODA (SVW) 1KD 615 301 D, SKODA (SVW) 3CD 615 301, VAG 1K0 615 301 AA, VAG 1KD 615 301 D, VAG 3CD 615 301, VAG 561 615 301, VAG 561 615 301 A, VAG 561 615 301 B, VAG 5C0 615 301 B, VAG 5C0 615 301 E, VAG 5Q0 615 301 F, VAG 5QM 615 301 A, VAG JZW 615 301 H, VAG L1KD 615 301 D, VAG L3CD 615 301, VW (FAW) 1K0 615 301 AA, VW (FAW) 1KD 615 301 D, VW (FAW) 3CD 615 301, VW (FAW) 5C0 615 301 B, VW (FAW) 5C0 615 301 E, VW (FAW) L1K0 615 301 AA, VW (FAW) L1KD 615 301 D, VW (FAW) L3CD 615 301, VW (SVW) 1K0 615 301 AA, VW (SVW) 1KD 615 301 D
