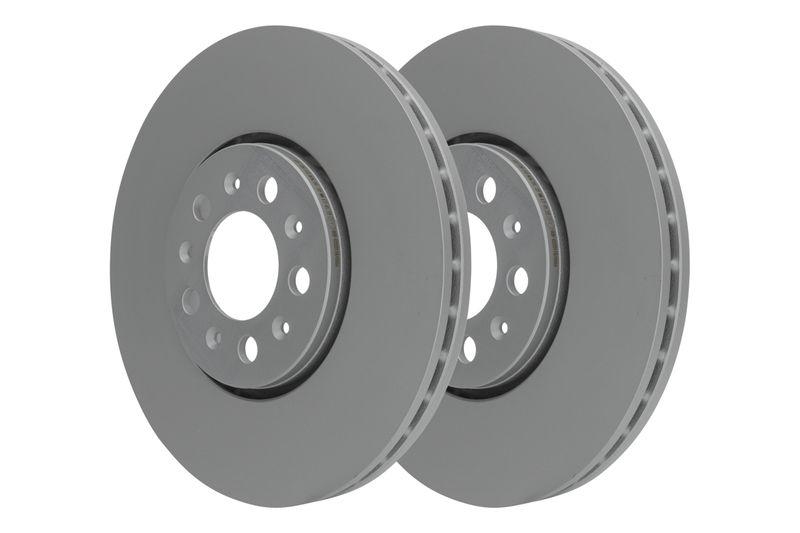

2x ATE Brake Disc
(24.0125-0113.1)
Item No.: 12697

Name: Werner Lott Kfz- und Industriebedarf GmbH
Address: Sollinger Oberhütte 6, Uslar, 37170, DE
Telephone: +49 (0) 5571 / 915 118 00
Rating: 4.94

Item No.:: 12697
Manufacturer:: ATE
Manufacturer-Number:: 24.0125-0113.1
EAN-Code:: 4006633295000

Fitting Position:: Front

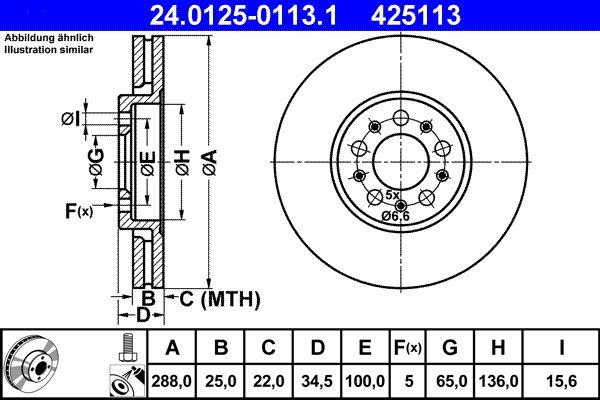

Height [mm]:: 34,5
Inner Diameter [mm]:: 136
Minimum thickness [mm]:: 22
Centering Diameter [mm]:: 65
Diameter [mm]:: 288
Brake Disc Thickness [mm]:: 25
Surface:: Coated
Bolt Hole Circle Ø [mm]:: 100
Brake Disc Type:: Vented with teardrop-shaped vents
Bore Ø [mm]:: 15,6
Machining:: High-carbon
Outer Diameter [mm]:: 288
Outer Diameter [mm]:: 288,00
Crossreference:: VAICO V10-6740, MAGNETI MARELLI 360406049302, HELLA PAGID 8DD 355 107-611, PROTECHNIC PRD2227, SKF VKBD 80074 V2, JURATEK VAG104, MEYLE 115 521 1051, JAPANPARTS DI-0901, JURID 562041JC, BREMBO 09.7010.2X, ABE C3W003ABE, MAGNETI MARELLI 360406049305, BORG & BECK BBD4105, MASTER-SPORT GERMANY 202521130, MAPCO 47714, FTE 9082544, ZIMMERMANN 100.1235.52, HELLA 8DD 355 107-611, MAXGEAR 19-0762SPORT, MINTEX MDC979C, MASTER-SPORT GERMANY 202501130, AP 24847 V, CIFAM 800-365C, SASIC 9004880J, MASTER-SPORT GERMANY 202501131P, SWAG 30 91 9370, GH GH-404712, JPN 30H9043-JPN, ABAKUS 231-03-029, TRUCKTEC AUTOMOTIVE 07.35.048, TOMEX Brakes TX 72-04, MASTER-SPORT GERMANY 24012501131PR-SET-MS, FEBI BILSTEIN 19370, EUROBRAKE 5815204760, BOSCH 0 986 478 867, MAPCO 47932, CHAMPION 562041CH, EUROREPAR 1618882980, National NBD875, MOTAQUIP LVBE243Z, OPTIMAL BS-8030HC, MAPCO 47934HPS, BREMBO 09.7010.76, ICER 78BD5604-2, ASHIKA 60-00-0901C, AUTOMOTOR France PDC3753, FREMAX BD-5604, QUINTON HAZELL BDC4735, NK 314760, TEXTAR 92106603, ASHUKI by Palidium P330-025, EUROBRAKE 5815314760, MAXGEAR 19-0762MAX, BREMBO 09.7010.21, DENCKERMANN B130265, FRIGAIR DC10.107, JAPANPARTS DI0901JM, MASTER-SPORT GERMANY 202521133, ASHIKA 60-00-0901, MASTER-SPORT GERMANY 202501133P, MASTER-SPORT GERMANY 202521131, FERODO DDF1221C, DON PCD10532, MASTER-SPORT GERMANY 24012501131SE-SET-MS, MTR 12135431, A.B.S. 16882, ROTINGER RT 2879HP-GL, QUARO QD9764, HELLA 8DD 355 127-581, TOPRAN 107 682, MASTER-SPORT GERMANY 202501131, VALEO 197230, MAPCO 47900, ROTINGER RT 2879HP-GL T6, MAPCO 47934, FTE 9071372, ROTINGER RT 2879-GL, ROTINGER RT 2879HP-GL T3, ROTINGER RT 2879-GL T5, ROTINGER RT 2879-GL T9, QUARO QD9764HC, TRW DF4027, ProfiPower 3B1028, MASTER-SPORT GERMANY 24012501131-SET-MSP, TEXTAR 92106600, FTE BS4735HB, NK 204760, KAWE 6544 10, MAGNETI MARELLI 360406049300, AUTOMEGA 120016610, TEXTAR 92106605, JAPKO 600901C, JP GROUP 1163109000, ROTINGER RT 2879HP, MAXGEAR 19-0762, VALEO 672573, ZIMMERMANN 100.1235.20, FTE 9081314, HELLA PAGID 8DD 355 127-581, AP 24847 X, MASTER-SPORT GERMANY 24012501131-SET-MS, ROTINGER RT 2879HP-GL T9, MASTER-SPORT GERMANY 202501133, FTE BS4735, ROTINGER RT 2879, JAPANPARTS DI-0901C, FTE BS4735B, MASTER-SPORT GERMANY 24012501131SE-SET-MSP, VALEO 672799, AP X 24847, MASTER-SPORT GERMANY 24012501131-PCS-MS, ROTINGER RT 2879HP-GL T5, BARUM BAR25113, RIDEX 82B0143, MEYLE 183 521 1051/PD, MAPCO 15832, VAICO V10-80044, ROTINGER RT 2879-GL T6, MASTER-SPORT GERMANY 24012501131PR-PCS-MSP, REMSA 6544.10, ROTINGER RT 2879-GL T3, BRECO BV 8471, JAPKO 600901, METZGER 6110049, MASTER-SPORT GERMANY 202521131P, LPR A1451VR, ROADHOUSE 6544.10, MINTEX MDC979, BLUE PRINT ADV184309, MASTER-SPORT GERMANY 24012501131-PCS-MSP, MASTER-SPORT GERMANY 24012501131PR-SET-MSP, SAMKO A1451VR, MASTER-SPORT GERMANY 202521130P, MASTER-SPORT GERMANY 202501130P, MASTER-SPORT GERMANY 202521133P, ZIMMERMANN 100.1247.52, TRUSTING DF468, DACO Germany 604753, METELLI 23-0365C, ZIMMERMANN 100.1247.20, BOSCH 0 986 479 914, KAMOKA 1032442, Dr!ve+ DP1010.11.0918, TRISCAN 8120 29149C, MAPCO 15832C, BRECK BR 353 VA100, KRAFT AUTOMOTIVE 6046530, MASTER-SPORT GERMANY 24012501131PR-PCS-MS, MAGNETI MARELLI 353615830240, MAGNETI MARELLI 360406049301
Number of Holes:: 5
manufacturer:: ATE

Name:

Continental Aftermarket & Services GmbH

Website:

https://www.ate.de

E-Mail:

info@ate.de

Phone:

+49 6196 87-0

Street, House no:

Sodener Straße 9

ZIP / City:

65824 Schwalbach

Country:

Germany

manufacturer	model	type	power	capacity	constr. date	kba	limitations

OE numbers

SEAT 1J0 615 301 C, SEAT 1J0 615 301 R, SEAT 1J0 615 301 S, SKODA 1J0 615 301 C, SKODA 1J0 615 301 R, SKODA 6R0 615 301 A, SKODA 6R0 615 301 D, VAG 1J0 615 301 C, VAG 1J0 615 301 K, VAG 1J0 615 301 R, VAG 1J0 615 301 S, VAG 6R0 615 301 A, VAG 6R0 615 301 D

use numbers
