LUFTFILTER + ÖLFILTER + INNENRAUMFILTER + ZÜNDKERZEN + ÖLABLASSSCHRAUBE
(3000028)
Item No.: XY185112

Item No.:: XY185112
Manufacturer:: LOTT Set
Manufacturer-Number:: 3000028
EAN-Code:: 4057311021190

Oil Filter

MANN-FILTER W 719/30
Outer diameter [mm]: 76
Inner diameter 1 [mm]: 62
Inner diameter 2 [mm]: 71
Thread Size: 3/4-16 UNF
Height [mm]: 123
Bypass Valve Opening Pressure [bar]: 2,5
Part number of the recommended special tools: LS 7
Supplementary Article/Info 2: with one anti-return valve

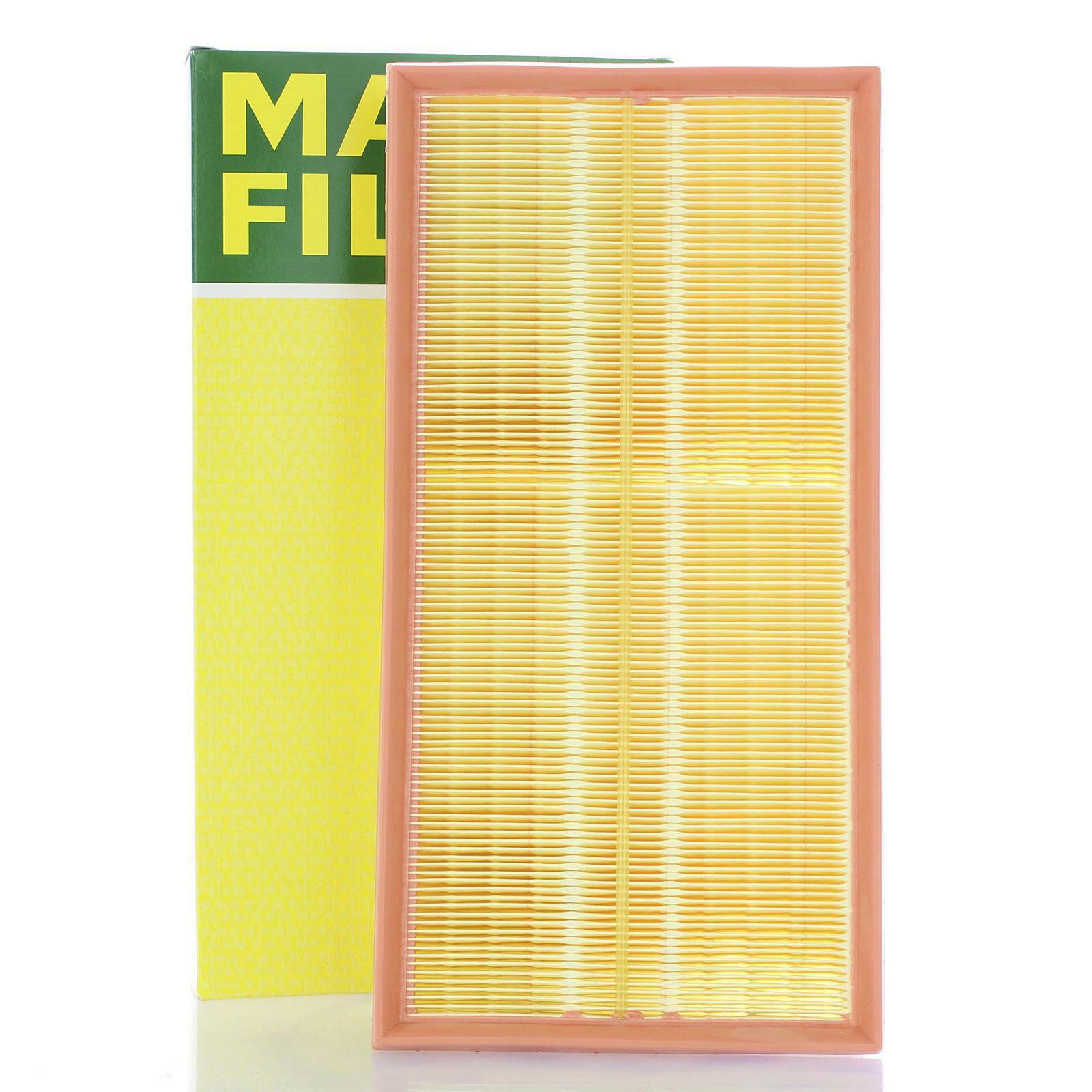

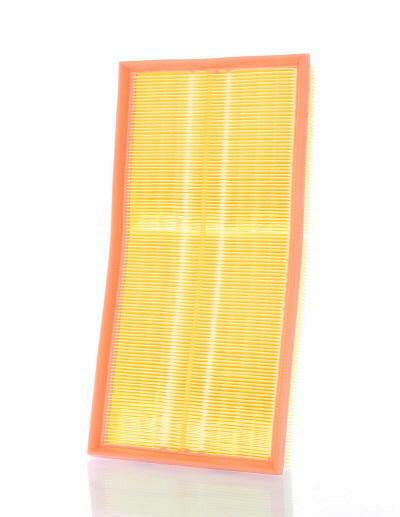

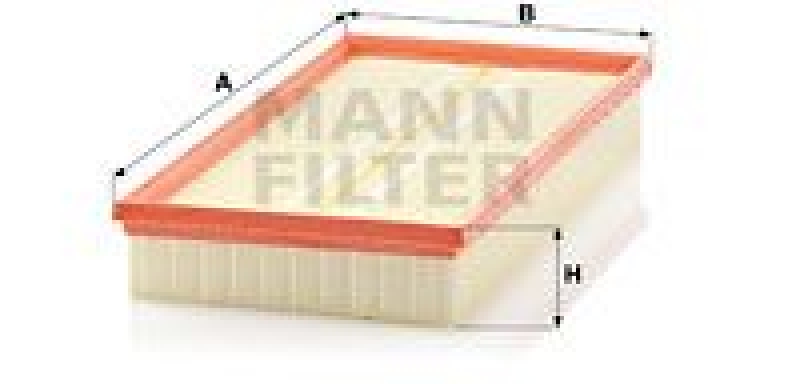

Air Filter

MANN-FILTER C 37 153
Length [mm]: 364
Width [mm]: 185
Height [mm]: 50

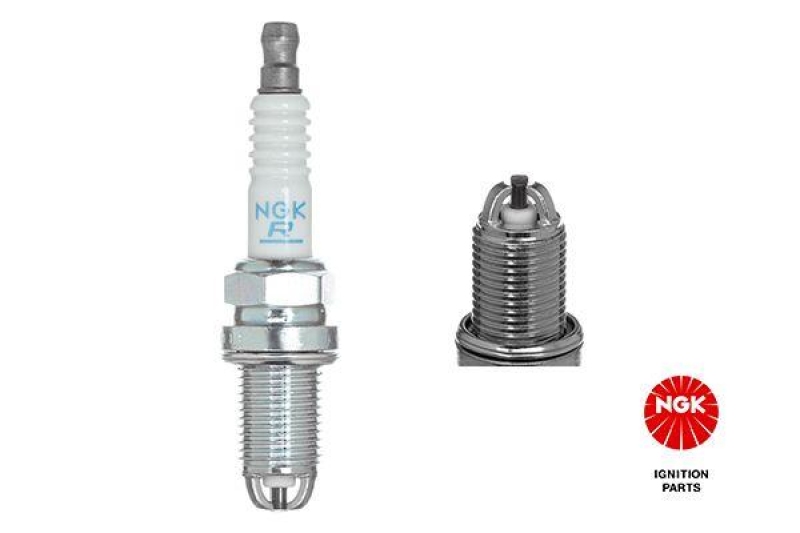

4x Spark Plug

NGK 2397
Spanner Size: 16 mm
Outer thread [mm]: 14,0
Thread Length [mm]: 19
Spark Plug: Fixed SAE connector
Spark Position [mm]: 5,2
Spark Plug: Nickel Middle Electrode, 3 - Earthed Electrode, interference Suppression 1kOhm, with gasket seat

Sealing Plug, oil sump

FEBI BILSTEIN 15374
Length [mm]: 29,5
Outer thread [mm]: M14 x 1,5
Spanner Size: 19
Bolt Head-/Nut Design: Male Hex
Material: Steel
Surface: Zinc-coated
Screw length below head [mm]: 22
Supplementary Article/Info 2: with seal
Weight [kg]: 0,04
Observe service information

Filter, interior air

MANN-FILTER adsotop CUK 2862
Length [mm]: 280
Width [mm]: 206
Height [mm]: 30
Filter type: Activated Carbon Filter

Height [mm]:: 50, 30, 123
20521652:: mit einem Rücklaufsperrventil
Width [mm]:: 206, 185
Spanner Size:: 16 mm, 19
Thread Size:: 3/4-16 UNF
Surface:: Zinc-coated
Material:: Steel
Thread Length [mm]:: 19
Bolt Head-/Nut Design:: Male Hex
Inner Diameter 2 [mm]:: 71
Inner Diameter 1 [mm]:: 62
Bypass Valve Opening Pressure [bar]:: 2,5
Filter type:: Activated Carbon Filter
Article number of the recommended special tool:: LS 7
Required quantity:: 1
Spark Position [mm]:: 5,2
Spark Plug:: interference Suppression 1kOhm, Nickel Middle Electrode, with gasket seat, Fixed SAE connector, 3 - Earthed Electrode
Supplementary Article/Info 2:: with one anti-return valve, with seal
Screw length below head [mm]:: 22
additionalarticlenumber:: C37153
Outer Diameter [mm]:: 76,00
External Thread [mm]:: M14 x 1,5, 14,0
manufacturer:: LOTT Set

manufacturer	model	type	power	capacity	constr. date	kba	limitations

OE numbers

AUDI 101 000 033 AA, AUDI 101 000 041 AC, AUDI 101 000 051 AA, AUDI N 908 132 01, AUDI N 908 132 02, BENTLEY 101 000 033 AA, BENTLEY 101 000 041 AC, BENTLEY 101 000 051 AA, CHRYSLER 68004313AA, KUBOTA 1J878-32431, KUBOTA HH153-32430, LAMBORGHINI 101 000 033 AA, LAMBORGHINI 101 000 041 AC, LAMBORGHINI 101 000 051 AA, MITSUBISHI MN980017, MITSUBISHI MN980254, SEAT 101 000 033 AA, SEAT 101 000 041 AC, SEAT 101 000 051 AA, SEAT 101 000 051 AC, SEAT N 908 132 01, SEAT N 908 132 02, SKODA 101 000 033 AA, SKODA 101 000 041 AC, SKODA 101 000 051 AA, SKODA N 908 132 02, VAG 034 115 561 A, VAG 06A 115 561, VAG 06A 115 561 B, VAG 06A 115 561 E, VAG 078 115 561 K, VAG 1J0 129 620, VAG 1J0 819 644, VAG 1J0 819 644 A, VAG 1JM 115 561 BZ, VAG 1JO 129 620, VAG JZW 819 653, VW 101 000 033 AA, VW 101 000 041 AC, VW 101 000 051 AA, VW N 908 132 01, VW N 908 132 02

use numbers
