LUFTFILTER + ÖLFILTER + INNENRAUMFILTER + ZÜNDKERZEN + ÖLABLASSSCHRAUBE
(3000044)
Item No.: XY185169

Item No.:: XY185169
Manufacturer:: LOTT Set
Manufacturer-Number:: 3000044
EAN-Code:: 4057311021497

Oil Filter

MANN-FILTER W 712/52
Outer diameter [mm]: 76
Inner diameter 1 [mm]: 62
Inner diameter 2 [mm]: 71
Thread Size: 3/4-16 UNF
Height [mm]: 92
Bypass Valve Opening Pressure [bar]: 2,5
Supplementary Article/Info 2: with one anti-return valve

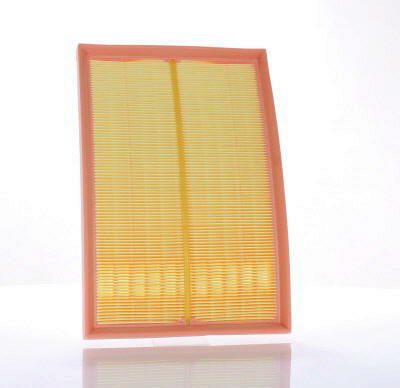

Air Filter

MANN-FILTER C 2998/5 x
Length [mm]: 288
Width [mm]: 188
Height [mm]: 42
Supplementary Article/Supplementary Info: with seal

Filter, interior air

MANN-FILTER CU 2545
Length [mm]: 252
Width [mm]: 216
Height [mm]: 32
Filter type: Particulate Filter

Sealing Plug, oil sump

FEBI BILSTEIN 15374
Length [mm]: 29,5
Outer thread [mm]: M14 x 1,5
Spanner Size: 19
Bolt Head-/Nut Design: Male Hex
Material: Steel
Surface: Zinc-coated
Screw length below head [mm]: 22
Supplementary Article/Info 2: with seal
Weight [kg]: 0,04
Observe service information

4x Spark Plug

NGK 6893
Spanner Size: 16 mm
Outer thread [mm]: 14,0
Thread Length [mm]: 19
Spark Plug: Fixed SAE connector
Spark Position [mm]: 7
Spark Plug: Nickel Middle Electrode, 1 - Earthed Electrode, interference Suppression 1kOhm, with gasket seat

Height [mm]:: 92, 32, 42
20521652:: mit einem Rücklaufsperrventil
Width [mm]:: 216, 188
Spanner Size:: 16 mm, 19
Thread Size:: 3/4-16 UNF
Surface:: Zinc-coated
Material:: Steel
Thread Length [mm]:: 19
Bolt Head-/Nut Design:: Male Hex
Inner Diameter 2 [mm]:: 71
Inner Diameter 1 [mm]:: 62
Bypass Valve Opening Pressure [bar]:: 2,5
Filter type:: Particulate Filter
Required quantity:: 1
Spark Position [mm]:: 7
Spark Plug:: interference Suppression 1kOhm, Nickel Middle Electrode, 1 - Earthed Electrode, with gasket seat, Fixed SAE connector
Supplementary Article/Info 2:: with one anti-return valve, with seal
Supplementary Article/Supplementary Info:: with seal
Screw length below head [mm]:: 22
additionalarticlenumber:: CU2545
Outer Diameter [mm]:: 76,00
External Thread [mm]:: M14 x 1,5, 14,0
manufacturer:: LOTT Set

Name:

Werner Lott Kfz- und Industriebedarf GmbH

Website:

https://www.lott.de/de

E-Mail:

info@lott.de

Phone:

05571 / 915 118 00

Street, House no:

Sollinger Oberhütte 6

ZIP / City:

37170 Uslar

Country:

Germany

manufacturer	model	type	power	capacity	constr. date	kba	limitations

OE numbers

AUDI 101 905 617, AUDI 101 905 617 R1, AUDI N 908 132 01, AUDI N 908 132 02, BENTLEY 101 905 617, BENTLEY 101 905 617 R1, CHRYSLER 68004313AA, LAMBORGHINI 101 905 617, LAMBORGHINI 101 905 617 R1, MITSUBISHI MN980017, MITSUBISHI MN980254, SEAT 101 905 617, SEAT 101 905 617 R1, SEAT N 908 132 01, SEAT N 908 132 02, SKODA 101 905 617, SKODA 101 905 617 R1, SKODA N 908 132 02, VAG 030 115 561 AA, VAG 030 115 561 AB, VAG 030 115 561 AD, VAG 030 115 561 AN, VAG 030 115 561 E, VAG 030 115 561 F, VAG 030 115 561 K, VAG 030 115 561 L, VAG 030 115 561 P, VAG 036 129 620 D, VAG 036 198 620, VAG 6Q0 820 367, VAG 6Q0 820 367 A, VAG 6Q0 820 367 B, VW 101 905 617, VW 101 905 617 R1, VW N 908 132 01, VW N 908 132 02

use numbers
