LUFTFILTER + ÖLFILTER + INNENRAUMFILTER + KRAFTSTOFFFILTER + ZÜNDKERZEN
(3000005KI)
Item No.: XY185062

Item No.:: XY185062
Manufacturer:: LOTT Set
Manufacturer-Number:: 3000005KI
EAN-Code:: 4057311020728

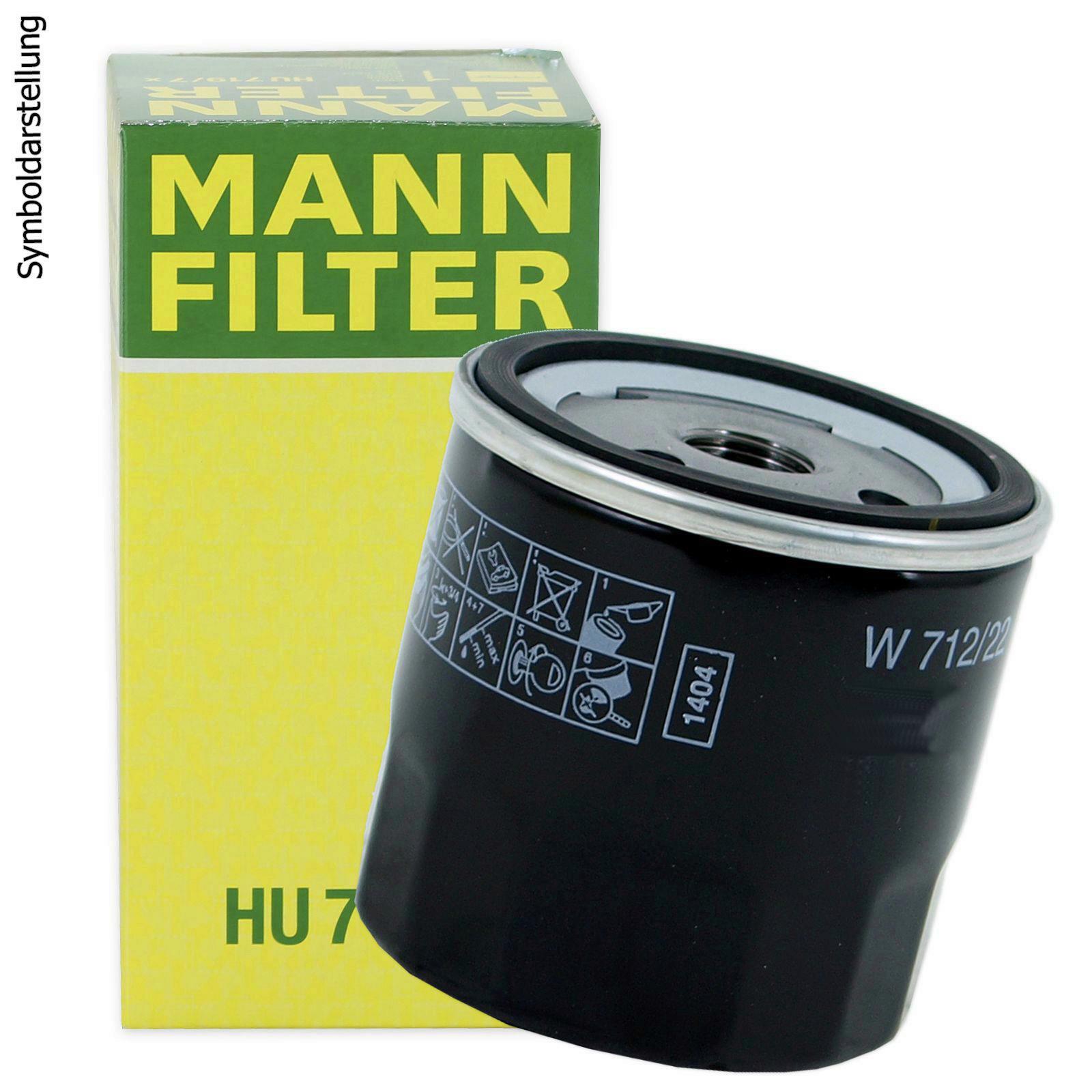

Oil Filter

MANN-FILTER W 712/52
Outer diameter [mm]: 76
Inner diameter 1 [mm]: 62
Inner diameter 2 [mm]: 71
Thread Size: 3/4-16 UNF
Height [mm]: 92
Bypass Valve Opening Pressure [bar]: 2,5
Supplementary Article/Info 2: with one anti-return valve
SVHC: No SVHC present!

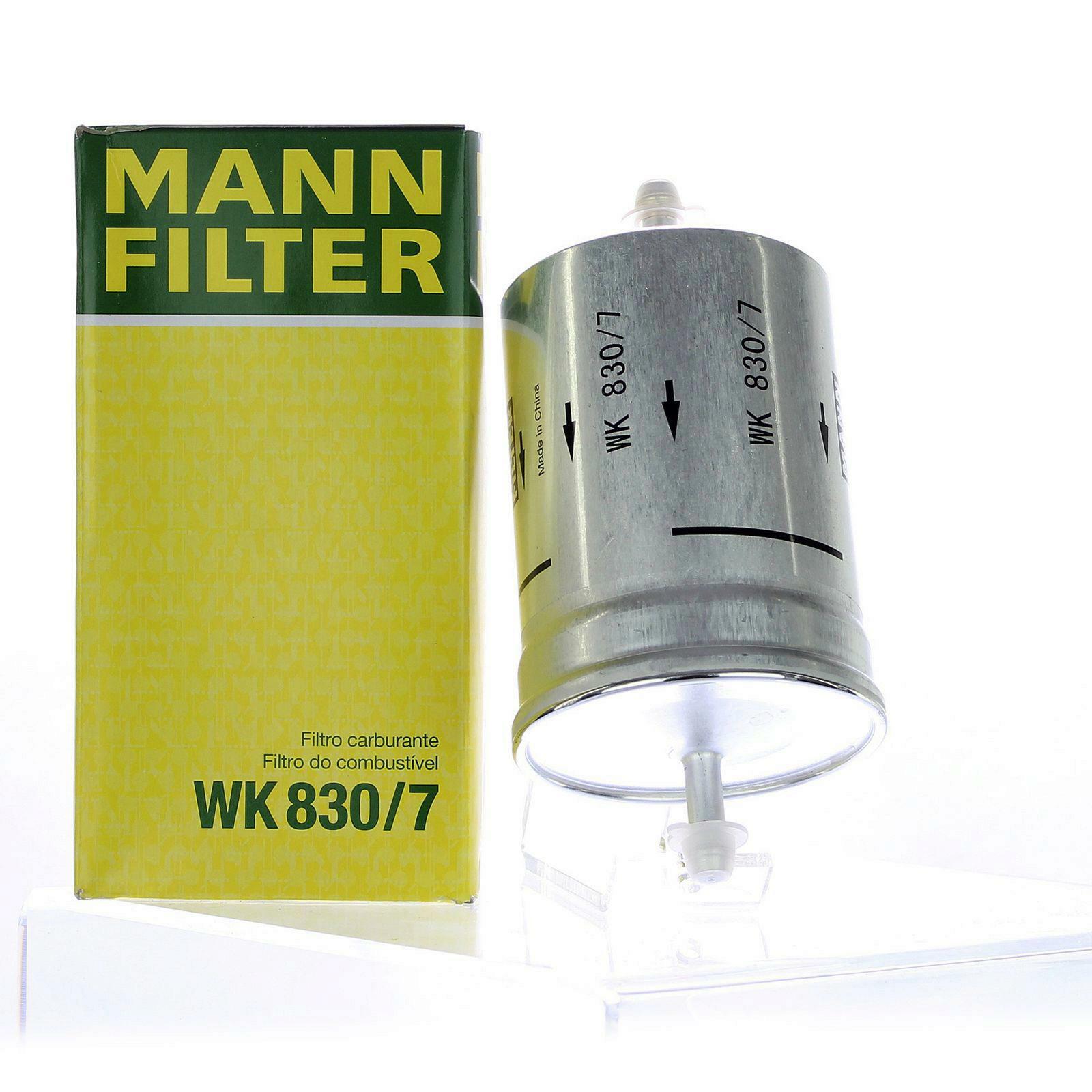

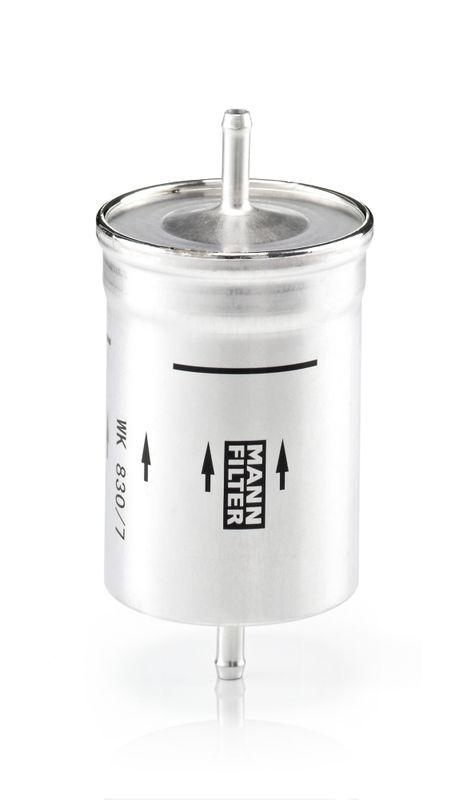

Fuel filter

MANN-FILTER WK 830/7
Outer diameter [mm]: 74
Outer diameter 1 [mm]: 81
Inlet Ø [mm]: 8
Outlet Ø [mm]: 8
Height [mm]: 164
SVHC: No SVHC present!

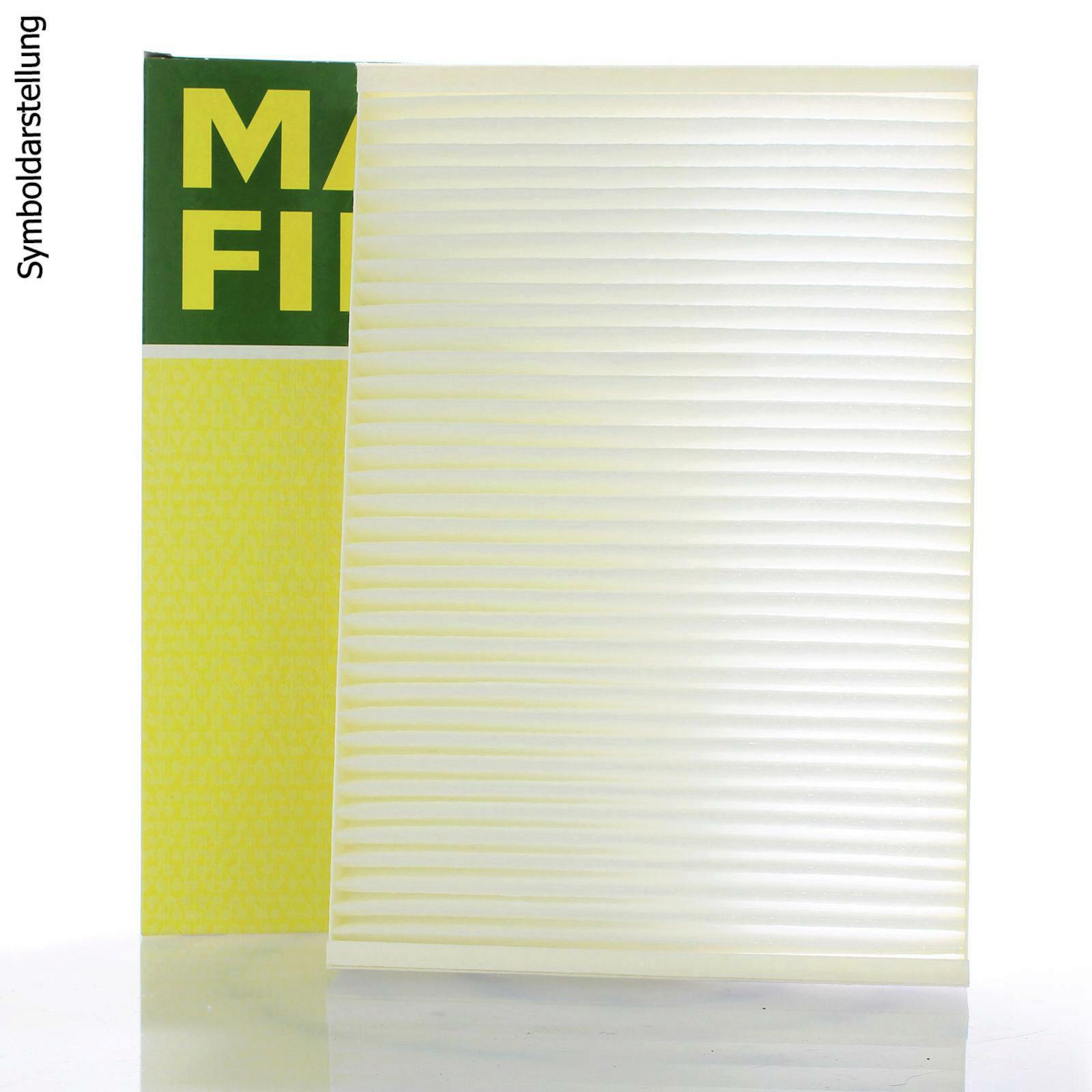

Filter, interior air

MANN-FILTER CU 2882
Length [mm]: 280
Width [mm]: 206
Height [mm]: 25
Filter type: Particulate Filter
SVHC: No SVHC present!

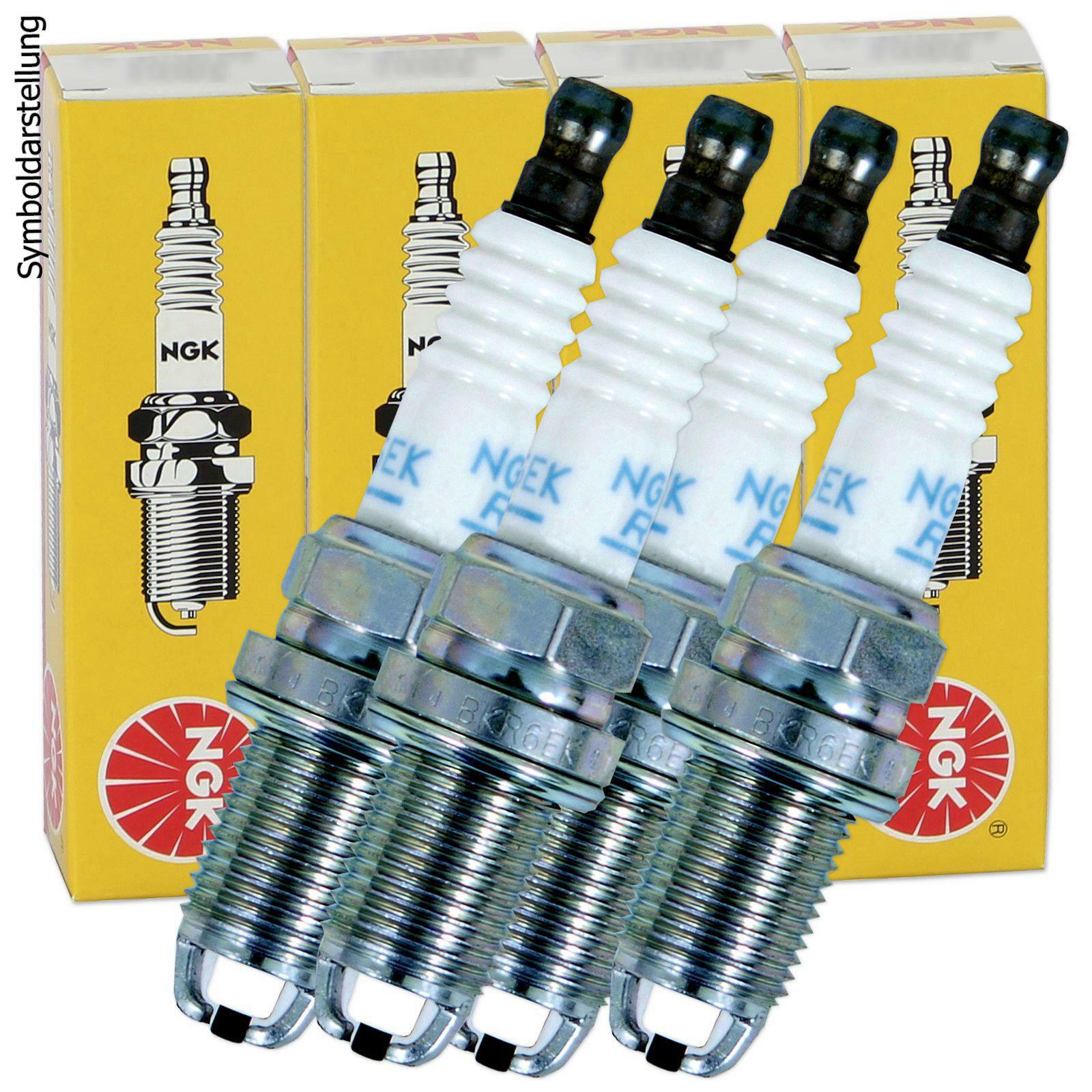

4x Spark Plug

NGK 3172
Spanner Size: 20,8 mm
Outer thread [mm]: 14,0
Thread Length [mm]: 19,0
Spark Plug: Connector Type M4
Spark Position [mm]: 5,2
Spark Plug: Nickel Middle Electrode, 3 - Earthed Electrode, interference Suppression 1kOhm, with gasket seat

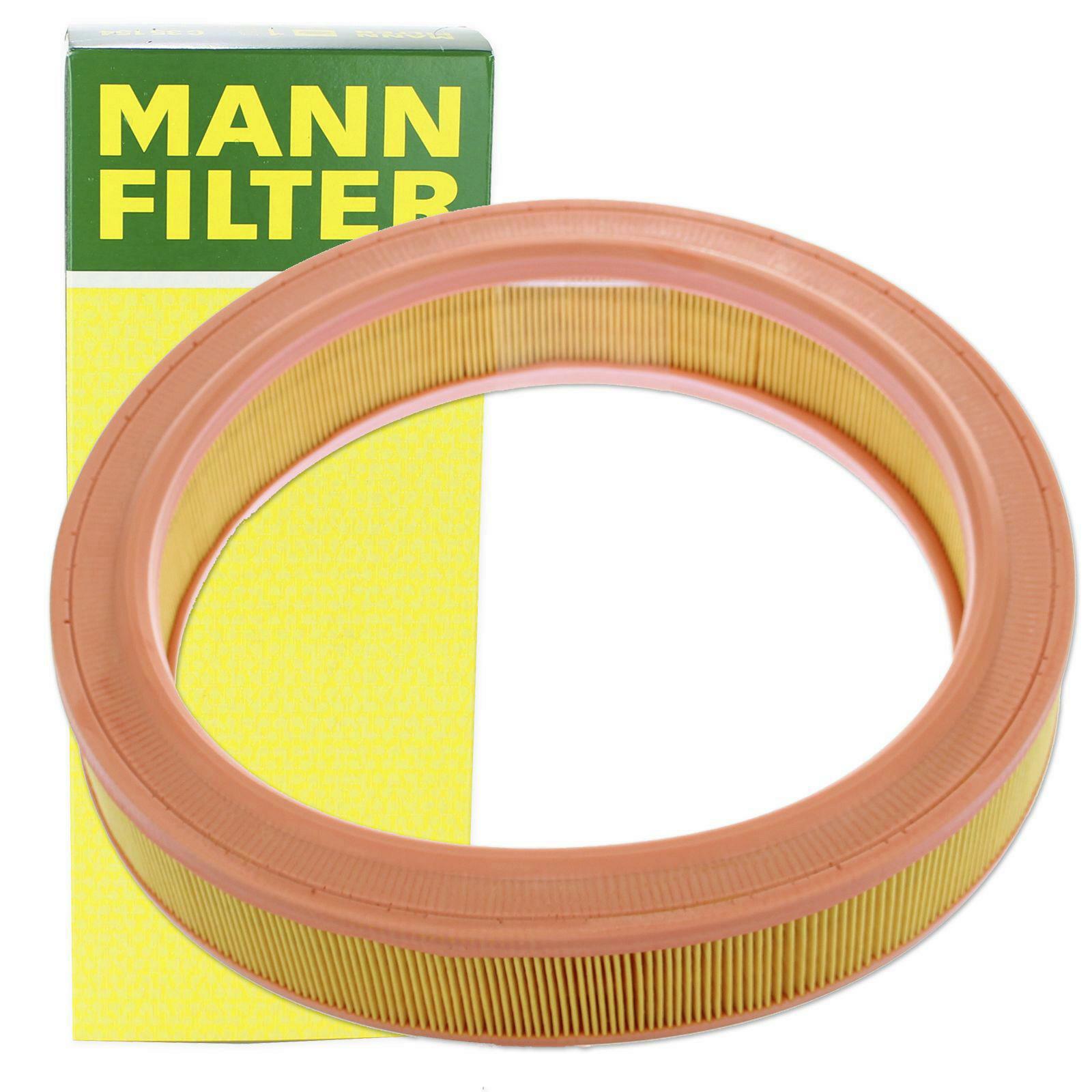

Air Filter

MANN-FILTER C 2873/1
Outer diameter [mm]: 278
Inner diameter [mm]: 221
Inner diameter 1 [mm]: 221
Height [mm]: 62
SVHC: No SVHC present!

Sealing Plug, oil sump

FEBI BILSTEIN 12281
Length [mm]: 23,8
Inner diameter [mm]: 14,4
Outer diameter [mm]: 19,8
Outer thread [mm]: M14 x 1,5
Spanner Size: 19
Bolt Head-/Nut Design: Male Hex
Material: Steel
Screw length below head [mm]: 16
Supplementary Article/Info 2: with seal
Weight [kg]: 0,033
Observe service information

manufacturer	model	type	power	capacity	constr. date	kba	limitations

OE numbers

ABARTH 60 80 60 24, ABARTH 76 86 64 3, ALFA ROMEO 60 80 60 24, ALFA ROMEO 76 86 64 3, AUDI 101 000 001 AB, AUDI 101 000 001 AC, AUDI 101 000 005 AA, AUDI 101 000 005 AB, AUDI 101 000 007 AA, AUDI 101 000 007 AB, AUDI 101 000 007 AD, AUDI 101 000 026 AB, AUDI 101 000 027 AA, AUDI 101 000 036 AA, AUDI 101 000 040 AD, AUDI 101 000 050 AC, AUDI N 902 889 01, AUDI N 902 889 01 S, AUDI N 902 889 01 S1, BENTLEY 101 000 001 AB, BENTLEY 101 000 001 AC, BENTLEY 101 000 005 AA, BENTLEY 101 000 005 AB, BENTLEY 101 000 007 AA, BENTLEY 101 000 007 AB, BENTLEY 101 000 007 AD, BENTLEY 101 000 026 AB, BENTLEY 101 000 027 AA, BENTLEY 101 000 036 AA, BENTLEY 101 000 040 AD, BENTLEY 101 000 050 AC, CITROËN 5962.21, FERRARI 60 80 60 24, FERRARI 76 86 64 3, FIAT 60 80 60 24, FIAT 76 86 64 3, FORD 1485 678, FORD 7212 351, LAMBORGHINI 101 000 001 AB, LAMBORGHINI 101 000 001 AC, LAMBORGHINI 101 000 005 AA, LAMBORGHINI 101 000 005 AB, LAMBORGHINI 101 000 007 AA, LAMBORGHINI 101 000 007 AB, LAMBORGHINI 101 000 007 AD, LAMBORGHINI 101 000 026 AB, LAMBORGHINI 101 000 027 AA, LAMBORGHINI 101 000 036 AA, LAMBORGHINI 101 000 040 AD, LAMBORGHINI 101 000 050 AC, LANCIA 60 80 60 24, LANCIA 76 86 64 3, LEXUS 90098-70085, MASERATI 60 80 60 24, MASERATI 76 86 64 3, PEUGEOT 5962.21, SEAT 101 000 001 AB, SEAT 101 000 001 AC, SEAT 101 000 005 AA, SEAT 101 000 005 AB, SEAT 101 000 007 AA, SEAT 101 000 007 AB, SEAT 101 000 007 AD, SEAT 101 000 026 AB, SEAT 101 000 027 AA, SEAT 101 000 036 AA, SEAT 101 000 040 AD, SEAT 101 000 050 AC, SEAT N 902 889 01, SEAT N 902 889 01 S, SEAT N 902 889 01 S1, SKODA 101 000 001 AB, SKODA 101 000 001 AC, SKODA 101 000 005 AA, SKODA 101 000 005 AB, SKODA 101 000 007 AA, SKODA 101 000 007 AB, SKODA 101 000 007 AD, SKODA 101 000 026 AB, SKODA 101 000 027 AA, SKODA 101 000 036 AA, SKODA 101 000 040 AD, SKODA 101 000 050 AC, SKODA N 902 889 01, SKODA N 902 889 01 S, SKODA N 902 889 01 S1, TOYOTA 90098-70085, VAG 030 115 561 AA, VAG 030 115 561 AB, VAG 030 115 561 AD, VAG 030 115 561 AN, VAG 030 115 561 E, VAG 030 115 561 F, VAG 030 115 561 K, VAG 030 115 561 L, VAG 030 115 561 P, VAG 030 129 620 A, VAG 032 129 620, VAG 115-9462.05, VAG 115-9462.05 S, VAG 1H0 201 511, VAG 1H0 201 511 A, VAG 1H0 819 638 A, VAG 1H0 819 638 B, VAG 1H0 819 644, VAG 1H0 819 644 A, VAG 1H0 819 644 B, VAG 1HO 201 511, VAG 1HO 819 644, VAG 251 201 511 A, VAG 251 201 511 H, VAG SE 021 104 653 A, VW 101 000 001 AB, VW 101 000 001 AC, VW 101 000 005 AA, VW 101 000 005 AB, VW 101 000 007 AA, VW 101 000 007 AB, VW 101 000 007 AD, VW 101 000 026 AB, VW 101 000 027 AA, VW 101 000 036 AA, VW 101 000 040 AD, VW 101 000 050 AC, VW N 902 889 01, VW N 902 889 01 S, VW N 902 889 01 S1

use numbers
