ATE BREMSSCHEIBEN + ATE BREMSBELÄGE
(1000093ATE)
Item No.: XY190542

Name: Werner Lott Kfz- und Industriebedarf GmbH
Address: Sollinger Oberhütte 6, Uslar, 37170, DE
Telephone: +49 (0) 5571 / 915 118 00
Rating: 4.94

Item No.:: XY190542
Manufacturer:: ATE
Manufacturer-Number:: 1000093ATE
EAN-Code:: 4057311001994

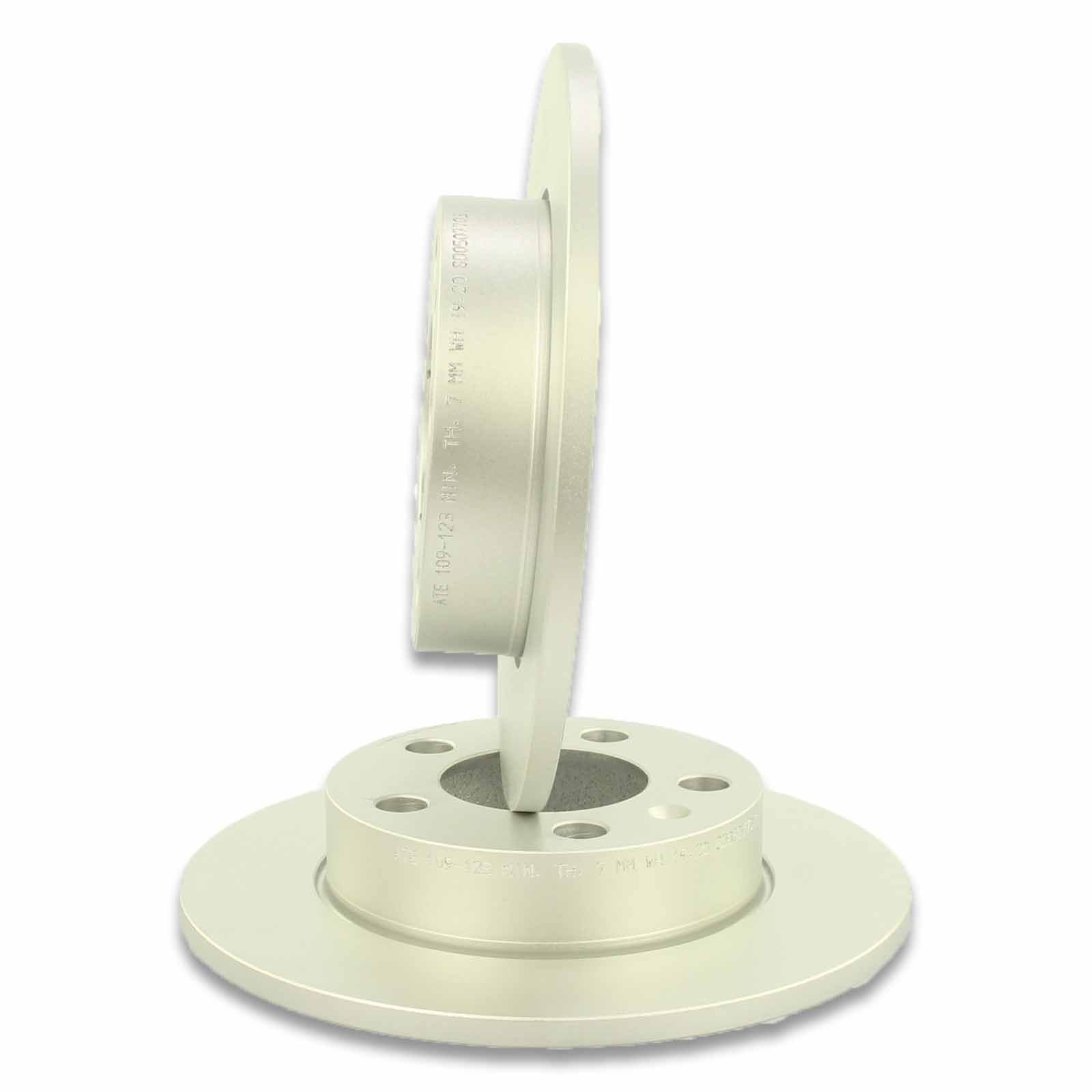

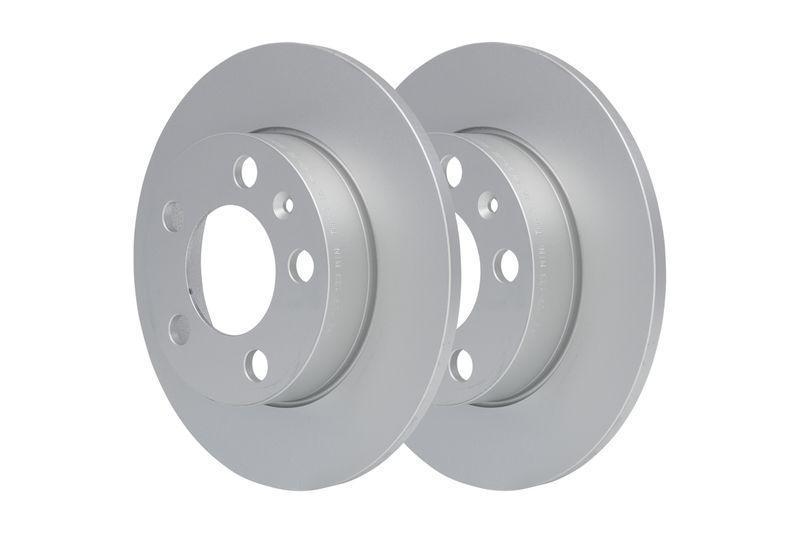

2x Brake Disc

ATE 24.0109-0123.1
Diameter [mm]: 230,0
Brake Disc Thickness [mm]: 9,0
Minimum thickness [mm]: 7,0
Brake Disc Type: Solid
Number of Holes: 5
Surface: Coated
Bolt Hole Circle Ø [mm]: 100,0
Height [mm]: 40,6
Centering Diameter [mm]: 65,0
Inner diameter [mm]: 125,8
Bore Ø [mm]: 15,6
Supplementary Article/Info 2: with screws
MAPP code available
Inspection Tag: E1 90R-02C0165/0960

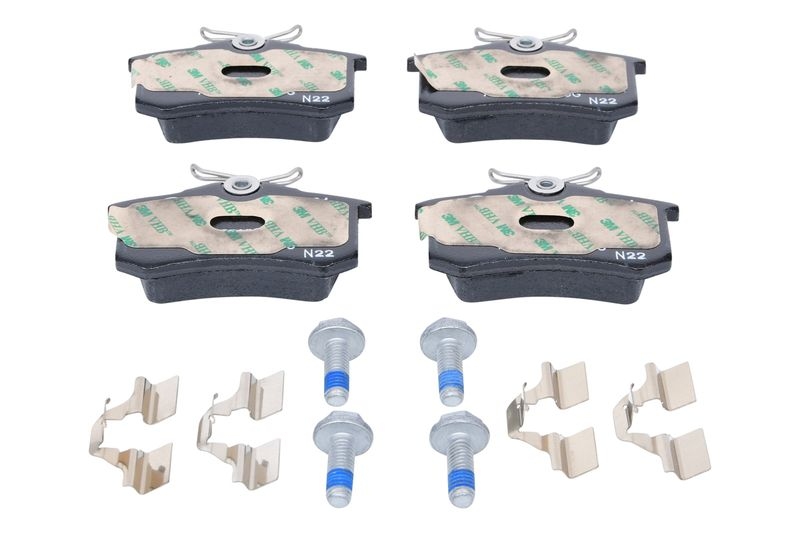

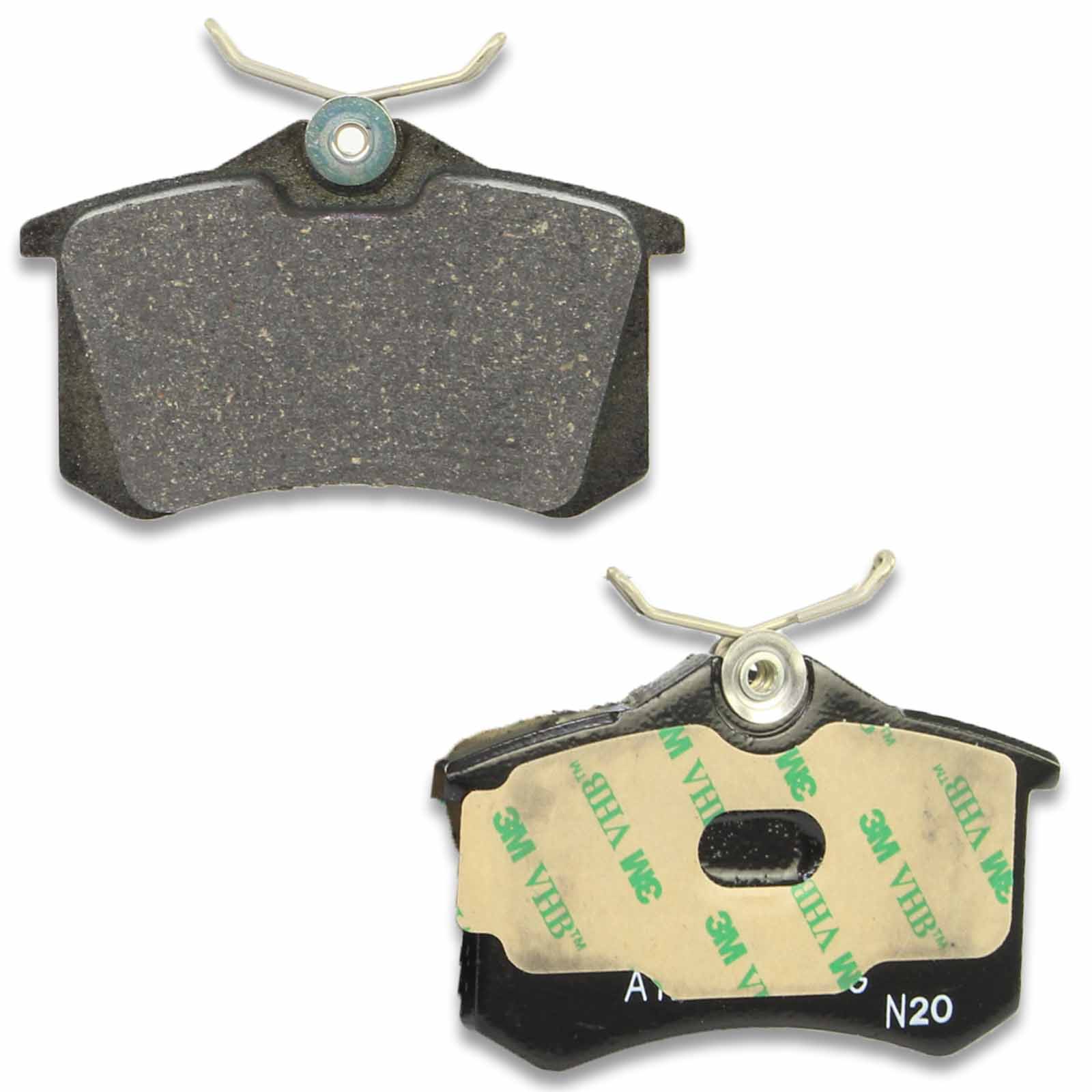

Brake Pad Set, disc brake

ATE 13.0460-2894.2
Width [mm]: 87,6
Height [mm]: 52,9
Thickness [mm]: 17,2
Wear Warning Contact: excl. wear warning contact
Supplementary Article/Supplementary Info: with accessories
Supplementary Article/Info 2: with brake caliper screws
Number of screws: 4
Brake System: Lucas / TRW
Inspection Tag: E1 90R-02A0333/0221, E1 90R-02A0650/0200
MAPP code available
Part number of recommended accessories: 13.0460-0072.2
Observe dimensions

1x Bremspaste 5g

Fitting Position:: Rear
Height [mm]:: 40,6, 52,9
Thickness [mm]:: 17,2
Wear Warning Contact:: excl. wear warning contact
20521652:: mit Zubehör
Number of bolts/screws:: 4
Width [mm]:: 87,6
Inner Diameter [mm]:: 125,8
Minimum thickness [mm]:: 7
Centering Diameter [mm]:: 65
Diameter [mm]:: 230
Brake Disc Thickness [mm]:: 9
Surface:: Coated
Bolt Hole Circle Ø [mm]:: 100
Brake Disc Type:: voll
Bore Ø [mm]:: 15,6
Outer Diameter [mm]:: 230
Number of Holes:: 5
manufacturer:: ATE

Name:

Continental Aftermarket & Services GmbH

Website:

https://www.ate.de

E-Mail:

info@ate.de

Phone:

+49 6196 87-0

Street, House no:

Sodener Straße 9

ZIP / City:

65824 Schwalbach

Country:

Germany

manufacturer	model	type	power	capacity	constr. date	kba	limitations

OE numbers

SEAT 1J0 615 601, SEAT 1J0 615 601 C, SEAT 1J0 615 601 N, SEAT 1J0 615 601 P, SEAT 1J0 698 451, SEAT 1J0 698 451 F, SEAT 1J0 698 451 J, SEAT 1J0 698 451 P, SEAT 2Q0 615 601 H, SEAT JZW 698 451 A, SKODA 1J0 615 601, SKODA 1J0 615 601 C, SKODA 1J0 615 601 N, SKODA 1J0 615 601 P, SKODA 1J0 698 451, SKODA 1J0 698 451 F, SKODA 1J0 698 451 J, SKODA 1J0 698 451 M, SKODA 1J0 698 451 P, SKODA 1J0 698 451 S, SKODA 2Q0 615 601 H, SKODA JZW 698 451 A, VAG 1J0 615 601, VAG 1J0 615 601 C, VAG 1J0 615 601 N, VAG 1J0 615 601 P, VAG 1J0 698 451, VAG 1J0 698 451 B, VAG 1J0 698 451 D, VAG 1J0 698 451 E, VAG 1J0 698 451 F, VAG 1J0 698 451 J, VAG 1J0 698 451 N, VAG 1J0 698 451 P, VAG 1J0 698 451 R, VAG 1JD 698 451, VAG 2Q0 615 601 H, VAG JZW 698 451 A

use numbers
