ATE Bremsscheiben + ATE Ceramic Bremsbeläge
(1000919ATEC)
Item No.: WW869110

Item No.:: WW869110
Manufacturer:: ATE
Manufacturer-Number:: 1000919ATEC
EAN-Code:: 4057311291968

2x Brake Disc

ATE 24.0125-0158.1
Outer diameter [mm]: 312,0
Brake Disc Thickness [mm]: 25,0
Minimum thickness [mm]: 22,0
Brake Disc Type: Vented
Machining: High-carbon
Surface: Coated
Number of Holes: 5
No. of holes 2: 9
Bolt Hole Circle Ø [mm]: 112,0
Height [mm]: 49,9
Centering Diameter [mm]: 65,0
Inner diameter [mm]: 146,0
Bore Ø [mm]: 15,3
Supplementary Article/Info 2: with screws
MAPP code available
Inspection Tag: E1 90R-02C0115/1001

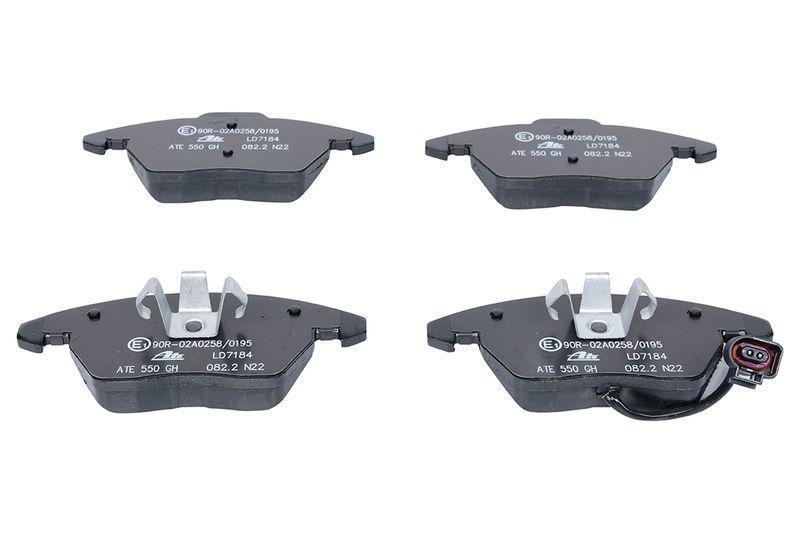

Brake Pad Set, disc brake

ATE ATE Ceramic 13.0470-7184.2
Width 1 [mm]: 155,1
Height 1 [mm]: 66,0
Width 2 [mm]: 156,3
Height 2 [mm]: 71,3
Thickness [mm]: 20,6
Wear Warning Contact: incl. wear warning contact
Warning Contact Length [mm]: 155
Number of wear indicators [per axle]: 1
Brake System: ATE
Inspection Tag: E1 90R-02A0258/0195
MAPP code available

2x Brake Disc

ATE 24.0112-0169.1
Outer diameter [mm]: 282,0
Brake Disc Thickness [mm]: 12,0
Minimum thickness [mm]: 10,0
Brake Disc Type: Solid
Number of Holes: 5
Surface: Coated
No. of holes 2: 9
Bolt Hole Circle Ø [mm]: 112,0
Height [mm]: 48,6
Centering Diameter [mm]: 65,0
Inner diameter [mm]: 159,0
Bore Ø [mm]: 15,3
Supplementary Article/Info 2: with screws
MAPP code available
Inspection Tag: E1 90R-02C0165/0535

Brake Pad Set, disc brake

ATE ATE Ceramic 13.0470-2880.2
Vehicle Equipment: for vehicles without electric parking brake
Width [mm]: 105,3
Height [mm]: 55,9
Thickness [mm]: 17,1
Wear Warning Contact: prepared for wear indicator, excl. wear warning contact
Supplementary Article/Supplementary Info: with accessories
Supplementary Article/Info 2: with brake caliper screws
Number of screws: 4
Brake System: Lucas / TRW
Inspection Tag: E1 90R-02A0258/0350
MAPP code available
Part number of recommended accessories: 13.0460-0035.2, 13.0460-0259.2
Observe dimensions

1x Bremspaste 5g

Fitting Position:: Rear, Front
Height [mm]:: 49,9, 48,6, 55,9
Thickness [mm]:: 17,1, 20,6
Wear Warning Contact:: prepared for wear indicator, incl. wear warning contact, excl. wear warning contact
Number of bolts/screws:: 4
Width [mm]:: 105,3
Inner Diameter [mm]:: 146, 159
Minimum thickness [mm]:: 22, 10
No. of holes 2:: 9
Centering Diameter [mm]:: 65
Diameter [mm]:: 282, 312
Brake Disc Thickness [mm]:: 25, 12
Surface:: Coated
Bolt Hole Circle Ø [mm]:: 112
Brake Disc Type:: Vented with teardrop-shaped vents, voll
Bore Ø [mm]:: 15,3
Machining:: High-carbon
Outer Diameter [mm]:: 282, 312
Width 2 [mm]:: 156,3
Width 1 [mm]:: 155,1
Height 1 [mm]:: 66
Height 2 [mm]:: 71,3
Number of wear indicators [per axle]:: 1
Outer Diameter [mm]:: 282,00, 312,00
Number of Holes:: 5
Warning Contact Length [mm]:: 155
manufacturer:: ATE

Name:

Continental Aftermarket & Services GmbH

Website:

https://www.ate.de

E-Mail:

info@ate.de

Phone:

+49 6196 87-0

Street, House no:

Sodener Straße 9

ZIP / City:

65824 Schwalbach

Country:

Germany

manufacturer	model	type	power	capacity	constr. date	kba	limitations

OE numbers

SEAT 1K0 615 301 AA, SEAT 1K0 615 601 AD, SEAT 1K0 615 601 M, SEAT 1K0 698 151, SEAT 1K0 698 151 E, SEAT 1K0 698 451 G, SEAT 1K0 698 451 P, SEAT 3AA 698 451, SEAT 3C0 698 151 B, SEAT 3C0 698 151 C, SEAT 3C0 698 151 J, SEAT 3C0 698 451 D, SEAT 3C0 698 451 E, SEAT 3C0 698 451 F, SEAT 5K0 698 151, SEAT 5N0 698 451, SEAT 5Q0 615 301 F, SEAT 5Q0 615 601 G, SEAT 8E0 698 451 J, SEAT JZW 615 301 H, SKODA 1K0 615 301 AA, SKODA 1K0 615 601 AD, SKODA 1K0 615 601 M, SKODA 1K0 698 151, SKODA 1K0 698 151 E, SKODA 1K0 698 451 D, SKODA 1K0 698 451 F, SKODA 1K0 698 451 G, SKODA 1K0 698 451 H, SKODA 1K0 698 451 P, SKODA 3C0 698 151 B, SKODA 3C0 698 151 C, SKODA 3C0 698 151 J, SKODA 5K0 698 151, SKODA 5K0 698 151 A, SKODA 5Q0 615 301 F, SKODA 5Q0 615 601 G, SKODA JZW 615 301 H, VAG 1K0 615 301 AA, VAG 1K0 615 601 AD, VAG 1K0 615 601 M, VAG 1K0 698 151, VAG 1K0 698 151 C, VAG 1K0 698 151 E, VAG 1K0 698 451, VAG 1K0 698 451 D, VAG 1K0 698 451 F, VAG 1K0 698 451 G, VAG 1K0 698 451 H, VAG 1K0 698 451 L, VAG 1K0 698 451 P, VAG 3AA 698 451, VAG 3C0 698 151, VAG 3C0 698 151 A, VAG 3C0 698 151 B, VAG 3C0 698 151 C, VAG 3C0 698 151 D, VAG 3C0 698 151 J, VAG 3C0 698 451, VAG 3C0 698 451 B, VAG 3C0 698 451 D, VAG 3C0 698 451 E, VAG 3C0 698 451 F, VAG 4F0 698 451 A, VAG 4F0 698 451 B, VAG 4F0 698 451 D, VAG 4F0 698 451 E, VAG 5C0 615 301 B, VAG 5K0 698 151, VAG 5K0 698 151 A, VAG 5N0 698 451, VAG 5Q0 615 301 F, VAG 5Q0 615 601 G, VAG 8E0 698 451 F, VAG 8E0 698 451 J, VAG 8E0 698 451 M, VAG JZW 615 301 H, VAG JZW 698 151 B, VAG JZW 698 451 D
